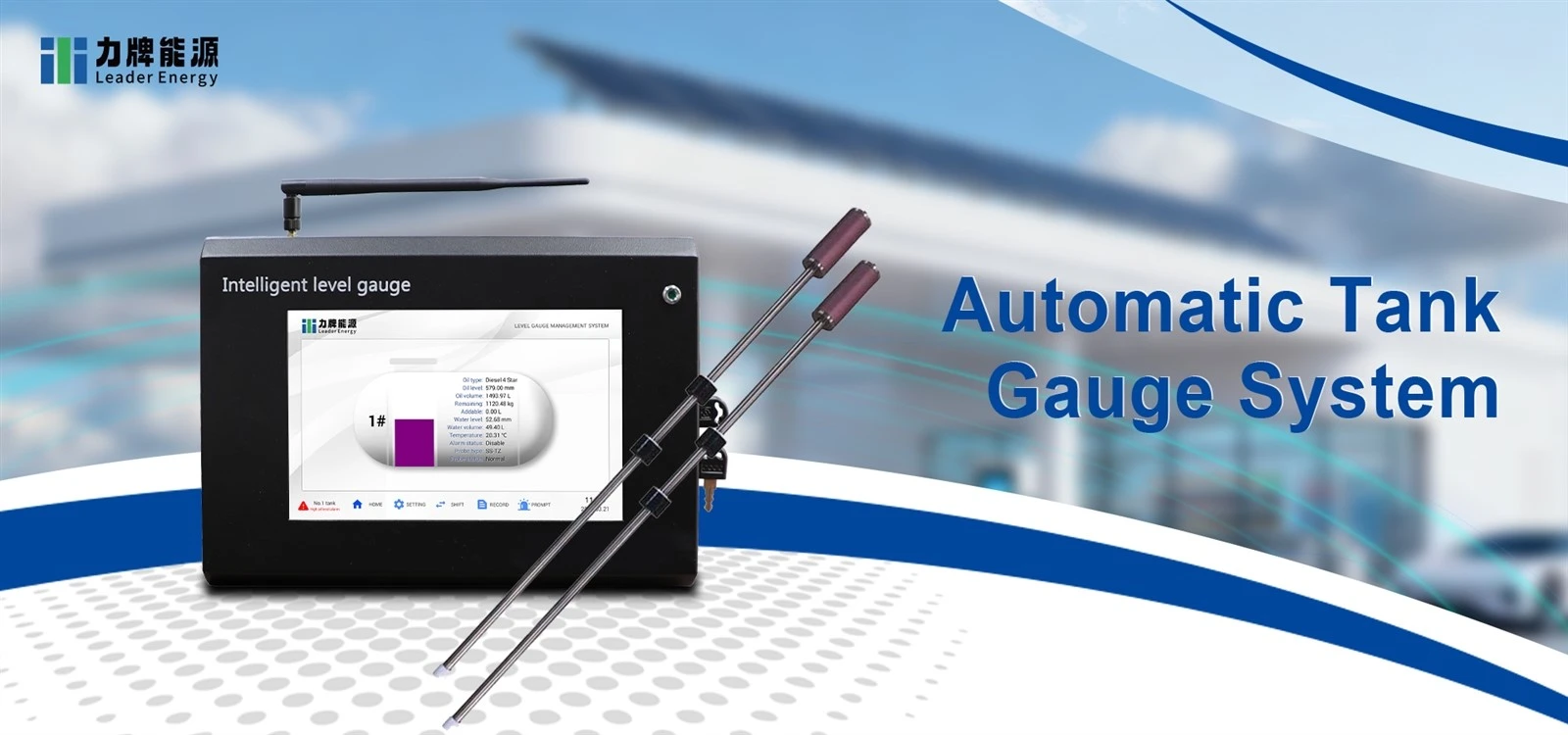

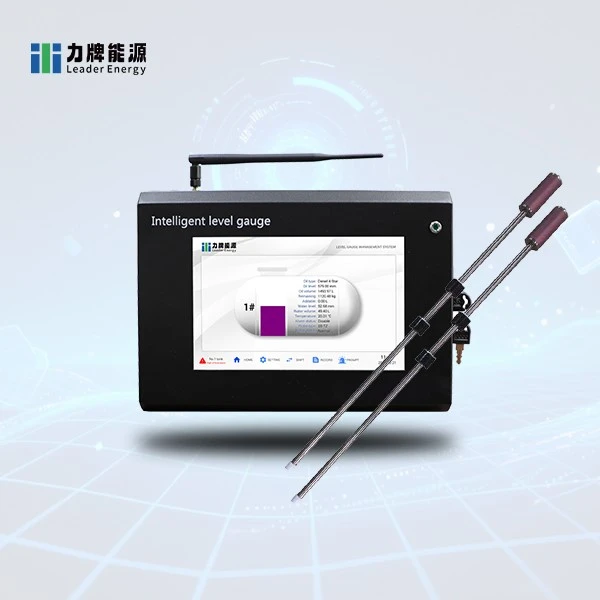

INKOKELI ENERGY inkqubo yegeyiji yetanki ezenzekelayo idibanisa igeyiji yetanki ekrelekrele kunye ne-magnetostrictive rigid rod probe ukuhambisa{0}}isisombululo somgangatho wolwelo oluphezulu{1}}enzelwe ukuchaneka nokuthembeka kuzo zonke iisetingi zemizi-mveliso.

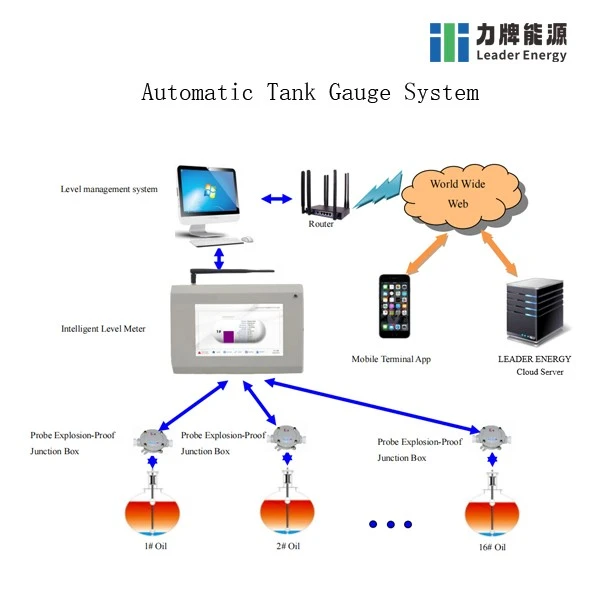

Isebenza kwisixokelelwano esisebenzayo se-Android esinombala wesikrini sokuchukumisa, esinika intuitive, umsebenzisi{0}}nobuhlobo bomntu{1}}nonxibelelwano lomatshini. Ixhotyiswe ngemigangatho ye-RS232 kunye ne-RS485 yojongano lwe-fieldbus yezoshishino, le nkqubo ye-ATG inokwandisa kakhulu: ixhasa isandi sangaphandle kunye ne-alamu yokukhanya, abashicileli abakhethiweyo, kunye noqhagamshelo olunokwandiswa kwiimodyuli zokuthintela ukuphuphuma. Ukongeza, ukubekwa esweni okude ngezixhobo eziphathwayo kwenza ufikelelo lokwenyani{6}}kwexesha kunye nolawulo.
Ngaphakathi, ibandakanya izinto zombane ezikumgangatho ophezulu kunye{0}nezixhobo ezikumgangatho ophezulu, kunye{1}}nezixhobo ezichasene nophazamiseko ezifana nezibambisi mbane kunye neTVS diode. Ezi mpawu ziqinisekisa ukuba inkqubo yokulinganisa itanki ezenzekelayo inikezela ngentembeko ephezulu, ubomi benkonzo ende, kunye nokusebenza okuzinzileyo nakwiimeko zoshishino ezirhabaxa{3} ezidityaniswe nokusebenza ngokulula kunye neemfuno zolondolozo oluphantsi.

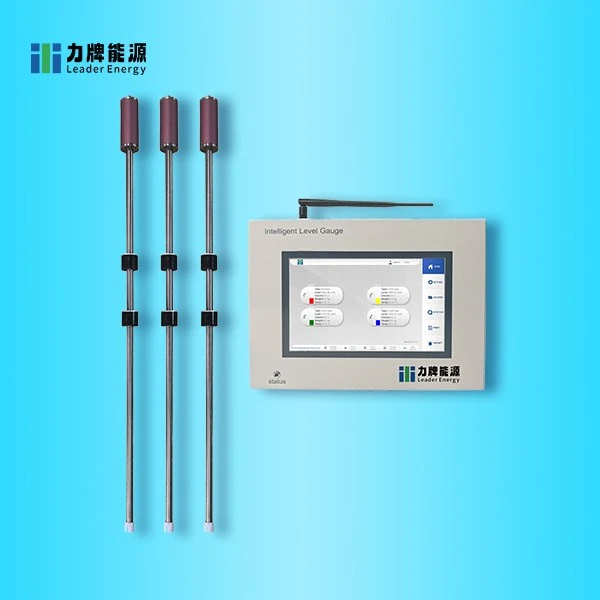

Elandelayo-isivamvo senqanaba lolwelo se-gen esakhelwe kubuchwepheshe bemagnetstrictive, olu phononongo lubala indawo yemagnethi edadayo ngokulinganisa umahluko wexesha lamaza oxinzelelo lwe-torsional, ukufikelela kumlinganiselo ochanekileyo womgangatho wolwelo. Iqhayisa ngokuthembeka okukhethekileyo, ubomi obude, ukusebenza okuzinzileyo, uyilo olubambeneyo, kunye nokuziqhelanisa okuqinileyo nokusingqongileyo{2}}nofakelo lwasimahla{3}nobunzima.
Abenzi boluvo abaSebenzayo ngokusekwe kobunye ubugcisa ngokuchaneka kunye{0}}nozinzo lwexesha elide, ifaneleke ngokubanzi umgangatho wolwelo esweni, ukulinganisa, kunye nolawulo oluzenzekelayo kumatanki, amadama, kunye nemikhombe kuyo yonke i-oyile & nerhasi, imichiza, amayeza, ukutya, kunye namanye amashishini.

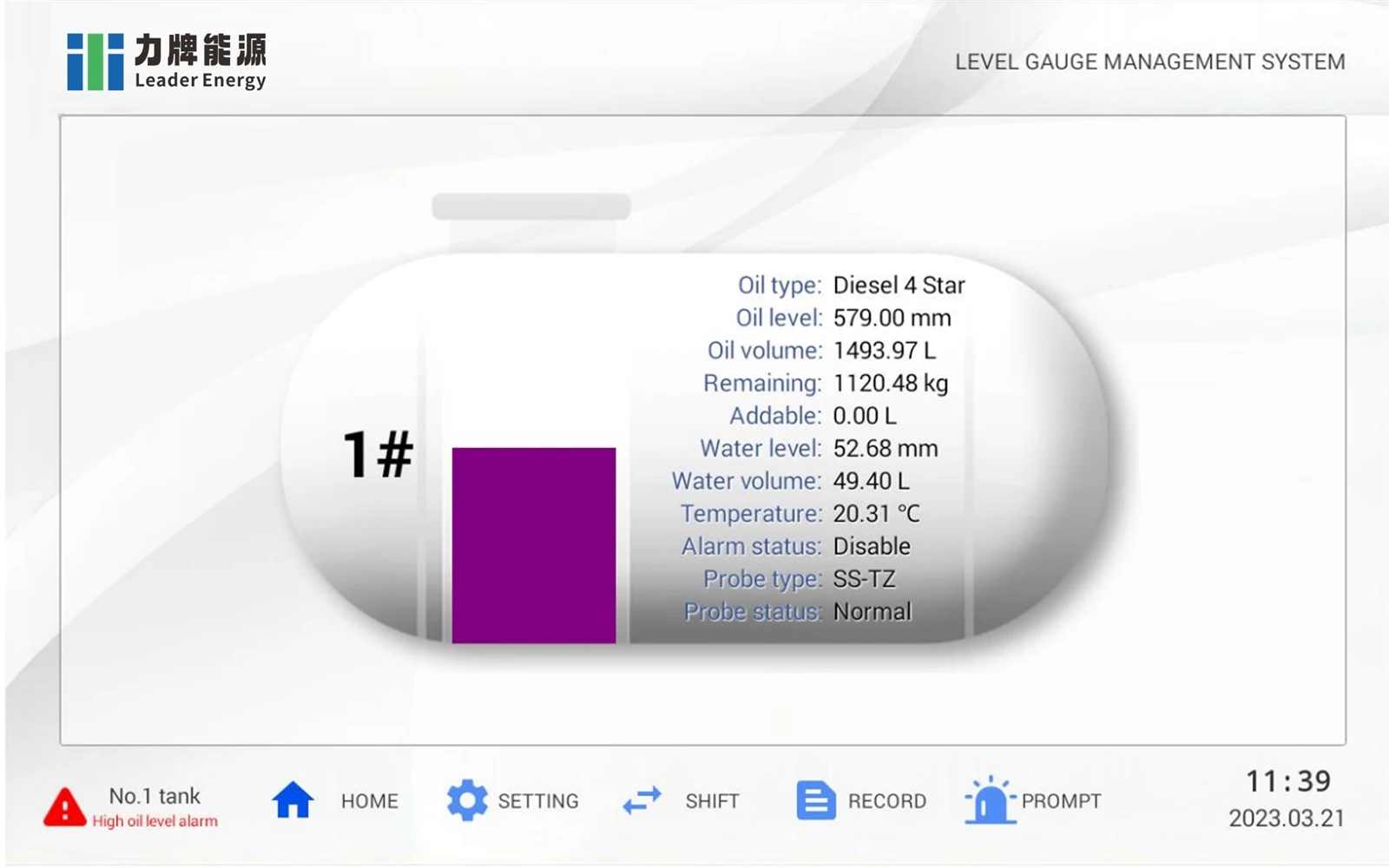

Ujongano Olungundoqo
Izicwangciso zeTanki
Tank Table Generation
Izicwangciso zeProbe
Izinto eziluncedo kunye neempawu
Ukusebenza okuLula kunye noKwandiswa olomeleleyo:
Ixhotyiswe ngenkqubo ye-Android kunye nombala we-capacitive touchscreen ukwenzela ukusebenzisana komatshini{0}}nomntu, kunye nokujongwa okukude okuselfowuni. Ibonisa umgangatho we-RS232/RS485 ujongano lokudibanisa ngokuguquguqukayo ii-alam zangaphandle, abashicileli, kunye neemodyuli zevalvu yokuthintela ukuphuphuma, ukuziqhelanisa neemfuno zamashishini ahlukeneyo.
Ukuchaneka okuphezulu kunye nozinzo oluthembekileyo:
I-magnetostrictive rigid rod probe ikhulisa ubuchwephesha obuphambili ukuphumeza umlinganiselo ochanekileyo womgangatho wolwelo ngokusebenzisa ixesha le-torsional stress wave, kunye nozinzo oluphezulu{0}} lwexesha elide ngaphezulu kwezivamvo zemveli. Yakhelwe-ngamacandelo{3}okuthintela uphazamiseko (izibambisi zombane, ii-TVS diode) ziqinisekisa ukuba inkqubo yegeyiji yetanki ezenzekelayo isebenza ngokuzinzileyo kwimekobume yemizi-mveliso erhabaxa.
Eyomeleleyo & Nogcino Oluphantsi:
Yenziwe{0}nezixhobo ezikumgangatho ophezulu kunye{1}}noyilo lokhuselo lomgangatho wobomi obude benkonzo. Iprobe iqhayisa ngesakhiwo esihlangeneyo kunye nofakelo olulula, ngelixa yonke inkqubo ye-ATG ilula ukusebenza ngeendleko eziphantsi zolondolozo, ukunciphisa ilahleko yokusetyenziswa kwexesha elide{3}}.
Impompo Iparamitha
- Uluhlu lokulinganisa: 500mm-6000mm
- Imo yemveliso: RS-485 Ubuninzi bonxibelelwano lomgama 1200 m
- Ubonelelo lwamandla: 24VDC
- Ukusetyenziswa kwamandla kwimveliso: Ngaphantsi okanye ilingana ne-60mA
- Ubushushu bokusebenza: -30℃-+60 degree
- Ukuchaneka komlinganiselo: ± 0.5mm.
- Phinda ukuchaneka: ± 0.2mm
- Isisombululo somgangatho we-oyile: 0.01mm
- Isisombululo somgangatho wamanzi: 0.01mm
- Amanqaku omlinganiselo wobushushu: 5
- Isisombululo senzwa yobushushu: 0.0625 degree
- Indawo eyimfama ephezulu: 60mm
- Indawo eyimfama esezantsi: 50mm
- Uqhushumbo-uphawu lobungqina: Ex ia IIAT5 Ga
- Izixhobo ezinxulumeneyo: Umqobo wokhuseleko wohlobo lweZener
- Amajelo afanelekileyo: Ipetroli, iparafini, idizili, ioli ekhaphukhaphu, ioli enzima, i-methanol, i-toluene, i-ethanol, i-acetic acid, i-ethyl ester kunye nolunye ulwelo.
- Idilesi yonxibelelwano: 2 amanani, umz. 01, 99.
- Udidi lokhuseleko: IP67
Ngathi
Ityala
UKhetho lwaBaxumi beHlabathi. Ngokusebenza okuqinisekisiweyo kuzo zonke izicelo, siliqabane onokuthi ulithembe.
Abathengi kunye neMiboniso
Bamkele ngokufudumeleyo abathengi abavela kwihlabathi liphela ukuba bandwendwele umzi-mveliso weNkokheli yaMandla eTshayina
Isatifikethi
Siqinisekisa ukhuseleko lokusebenza kunye{0}nesiqinisekiso sobungqina obuqhushumbayo, sikhusele ingeniso yakho ngomlinganiselo ochanekile, kwaye siphakamise umgangatho wamazwe ngamazwe nge-ISO & CE. Esi sisithembiso sethu, siqinisekisiwe.
FAQ
Umbuzo: Ndingayifumana njani ikowuti?
A: Konke okufuneka ukwenze kukungenisa iimfuno zakho kunye neenkcukacha zoqhagamshelwano. Umphathi wethu wokuthengisa oqeqeshiweyo uya kuqhagamshelana nawe kwangoko ukuze axoxe ngeenkcukacha ezithe vetshe.
Umbuzo: Ndingazifumana njani iimveliso? Ithini indlela yokuthumela ngenqanawa?
A: Ngokuqhelekileyo siya kukhetha eyona ndlela ifanelekileyo yolungiselelo ngokusekelwe kwimeko yokungeniswa kwabathengi, kwaye sineenkampani ezisebenzisanayo zezothutho zokuthumela.
Umbuzo: Liliphi ixesha lakho lokuvelisa?
A: Kuxhomekeke kubungakanani bomyalelo kunye nexesha lonyaka. Ngokuqhelekileyo sinokuthumela kwiintsuku ze-15-20, nceda uqhagamshelane nomphathi wethu wokuthengisa ngexesha elichanekileyo
